Demo Questions

Question 1

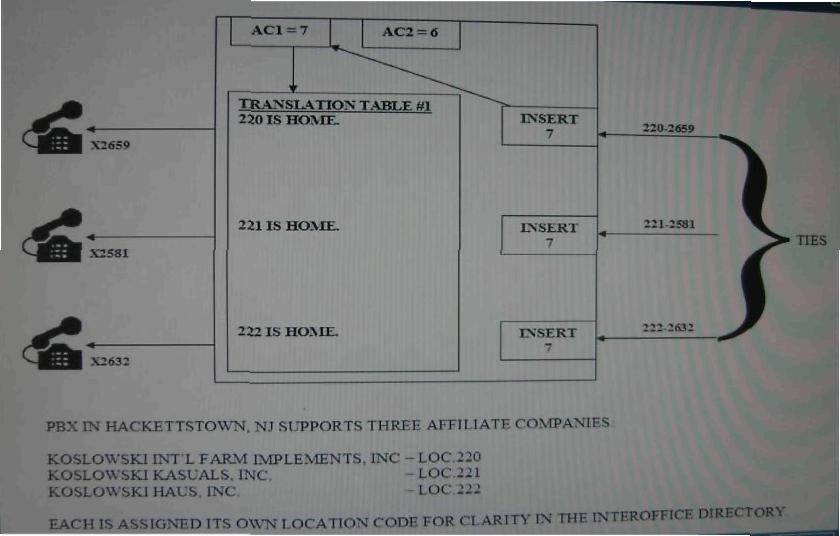

Click the Exhibit button.


Consider a company’s dialing plan shown in the exhibit and an example for its requirements:
A station user at the company, with Location Code 221, placed an ESN call, dialing 7-221-2581. This would be an On-Net call and the NARS programming must remove the LOC code and dial the DN internally.
What programming would remove the location code for a call dialed within the originating Communication Server 1000 to a DN on that same Communication Server 1000?
  1. Each site would have its own Location Code programmed as a Home Location Code (HLOC) under Translation Table #1 in their CS 1000.
  2. The location codes for each site would be programmed under the LOC programming in Translation Table #2 at all locations.
  3. Home NPA Codes (HNPA) for each site would be programmed under Translation Table #1 at each location in their CS 1000.
  4. Each site would have the Location Codes for all sites programmed as Home Location Codes (HLOC) in Translation Table #1 of their CS 1000.
Correct answer: A
Question 2
The Directory Number range for a customer dialing plan is 2500-2599.
Which entry indicates the number of digitals of the CDP Dialed Number (NCDP) for this dialing plan?
  1. 4
  2. 6
  3. 8
  4. 12
Correct answer: A
Question 3

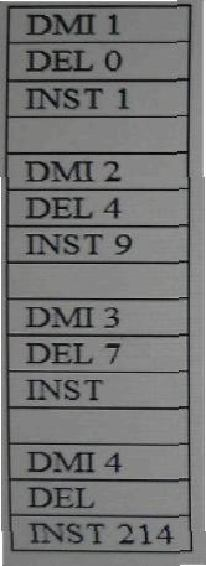

Click the Exhibit button.


The local Central Office required that all calls dialed utilize dialing, however users forget to dial the NPA for local calls. Which DMI entry would be utilized to insert the NPA of 214 when a user dials 9-774-3299?
  1. DMI Table 1
  2. DMI Table 2
  3. DMI Table 3
  4. DMI Table 4
Correct answer: D
Question 4
Your customer has a Communication Server 1000 RIs. 7 x system equipped with System Errors and Events Lookup pack 245 that provides the ability to display system messages on screen.
When a system message in received, which procedure should you use to look it up and display it on the screen?
  1. Enter the system error number followed by <cr>For example, bug4080<cr>
  2. Enter bug followed by the system error code and <cr>.For example, bugerr4080<cr>
  3. Enter errcde followed by the system error code and <cr>.For example, errcde bug4080<cr>
  4. Enter err followed by the system error code followed by <cr>.For example, err bug4080<cr>
Correct answer: B
Explanation:
Please see the extract below as pulled off of a Rel7.5 CS1000MG:OVL000 >err bug4080 > BUG4080 An out-of-range index has been detected for the "Type of Number" field contained in some ISDN information elements. The field cannot be correctly encoded or decoded. Severity: MinorOVL000
Please see the extract below as pulled off of a Rel7.5 CS1000MG:
OVL000
>err bug4080
>
BUG4080
An out-of-range index has been detected for the "Type of Number" field contained in some ISDN information elements. The field cannot be correctly encoded or decoded.
Severity: Minor
OVL000
Question 5

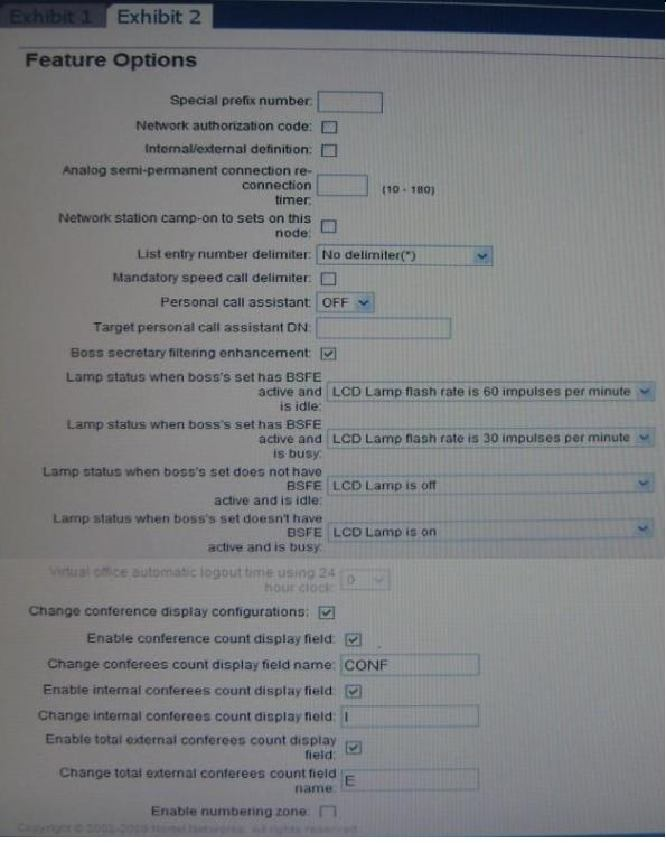

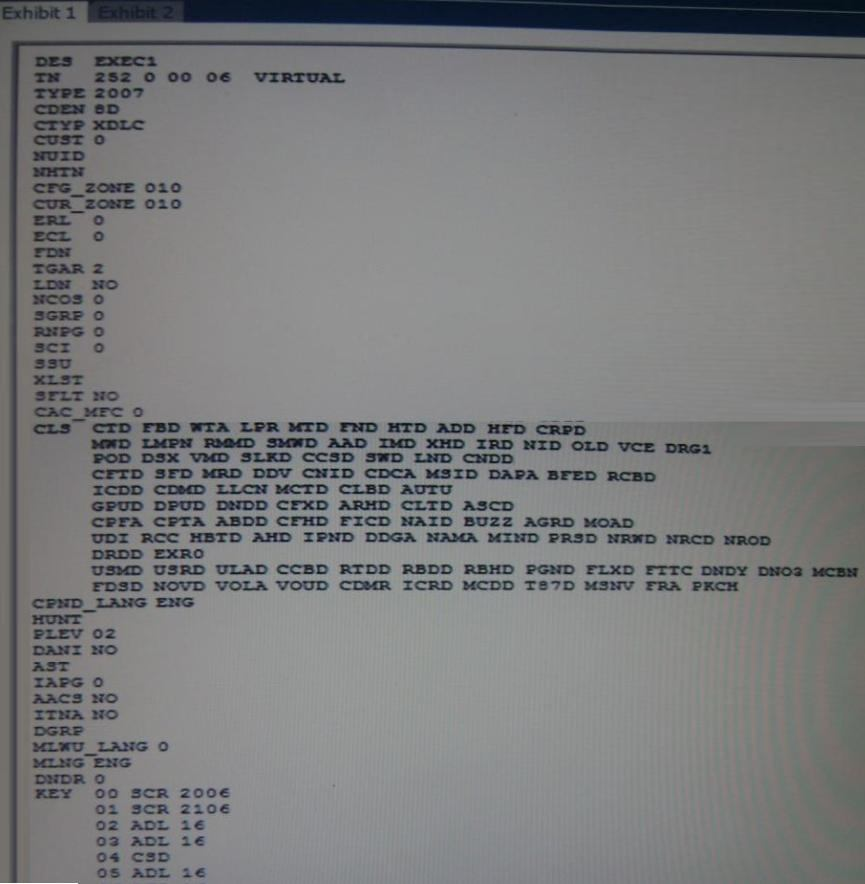

Click the Exhibit button.




A customer has asked if the Communication Server 1000 RIs. 7 x system can provide Exchange users with the ability to selectively drop people that have been added to a conference.
Based on the print-outs, what capabilities are currently available to the user of extension 2006?
  1. The user cannot see the conferee display count or selectively disconnect callers.
  2. The user can see the conferee display count and can selectively disconnect callers.
  3. The user can see the conferee display count but cannot selectively disconnect callers.
  4. The user cannot see the conferee display count but selectively disconnect callers.
Correct answer: B
Question 6
In order to set up the Customer Data Block within Element Manager to support Zone Based Dialing, and assuming Package 420 ZBD Package is installed and active, what needs to be done first?
  1. Configure Numbering Zones.
  2. Select the Private Dial Plan from the customer’s Features page.
  3. Select the Public Dial Plan from the customer’s Features page.
  4. Select the “Enable Numbering Zones” option from the customer’s Feature page.
Correct answer: D
Question 7

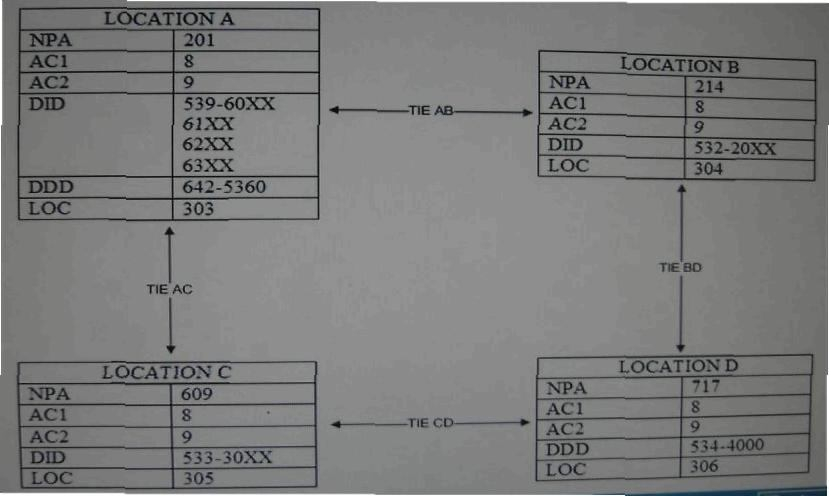

Click the Exhibit button.


Consider the a customer’s dialing plan shown in the exhibit, which detail on-net and off-net dialing requirements:
TIE trunks between Location A and Location B are currently out of service.
TIE trunks between Location B and Location D are currently out of service.
All over TIE trunks are fully functional.
Which route will a call to LOC 304-2001 take if it originates from location B?
  1. TIE BD to Location D.
  2. TIE AB to Location A.
  3. TIE BD to Location D, then TIE CD to Location C then TIE AC to Location A
  4. The call will not leave the originating PBX
Correct answer: D
Question 8

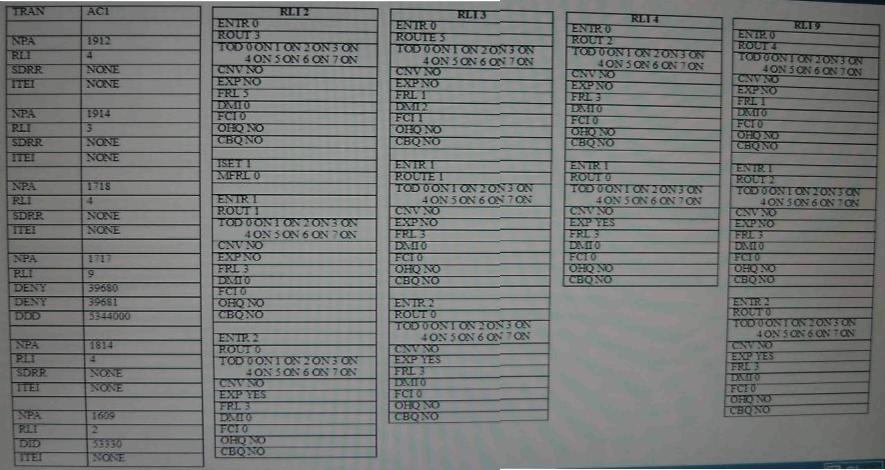

Click the Exhibit button.


Given the customer’s programmed database shown in the exhibit and where AC1 = 9, which RLI will call complete when a station user dials 9-814-666-3434?
  1. RLI 2
  2. RLI 3
  3. RLI 4
  4. RLI 9
  5. Call will not complete as dialed
Correct answer: E
Question 9

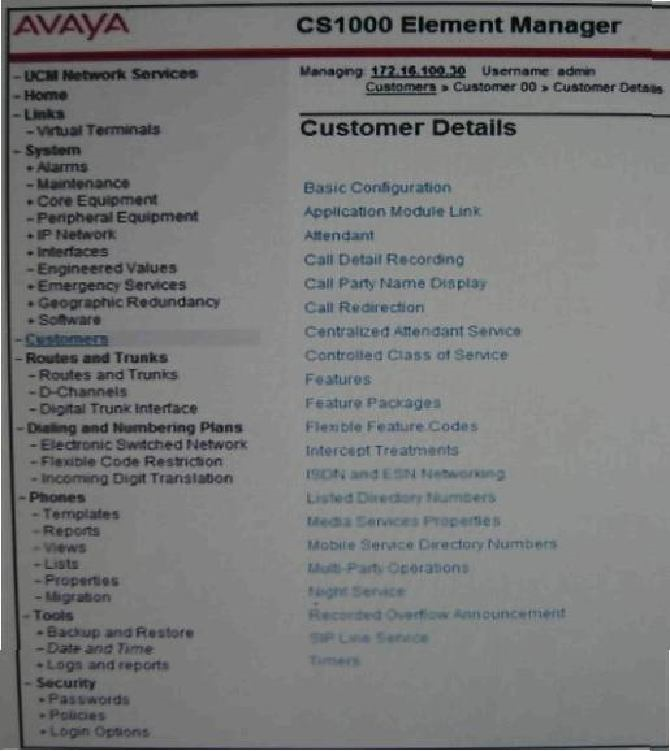

Click the Exhibit button.


You are adding ten digital telephones as required by a customer work order. The customer wants the user to see the calling or called name associated with the number dialed.
Which Customer Level feature from the list shown in the exhibit, must first be provisioned before you can enter names in at the station level?
  1. Call Redirection
  2. Feature Options
  3. Listed Directory Number
  4. Call Party Name Display
Correct answer: D
Question 10
Which IP Peer Networking component provides the centralized call routing for Communication Server 1000 systems in an Avaya Aura network solution?
  1. Call Manger
  2. System manager
  3. Session Border Controller
  4. Session Manager
Correct answer: D
